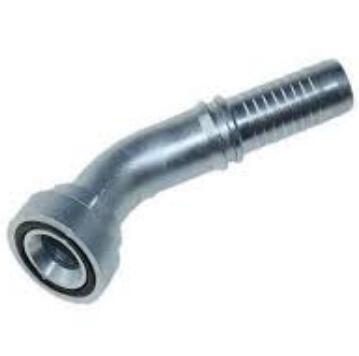

87943 45° SAE 法兰 9000psi 内锁式
45° SAE Flange 9000psi INTERLOCK
| 代号 | 法兰型号 | 软管 HOSE BORE | 尺寸 DIMENSIONS | ||||
| PART NO. | FLANGE SIZE | 公称内径DN | 标号DASH | A | C | D | H L |
| 87943-12-12 | 3/4" | 20 | 12 | 92.6 | 41.3 | 32 | 35.6 14.3 |
| 87943-16-12 | 1" | 20 | 12 | 93.7 | 47.6 | 38 | 36.7 14.3 |
| 87943-16-16 | 1" | 25 | 16 | 103.9 | 47.6 | 38 | 37.5 14.3 |
| 87943-20-16 | 1.1/4" | 25 | 16 | 104.6 | 54 | 43 | 38.2 14.3 |
| 87943-20-20 | 1.1/4" | 32 | 20 | 117.3 | 54 | 43 | 42.3 14.3 |
| 87943-24-20 | 1.1/2" | 32 | 20 | 118 | 63.5 | 51 | 43 14.3 |
| 87943-24-24 | 1.1/2" | 40 | 24 | 132.5 | 63.5 | 51 | 46.9 14.3 |
