BSP

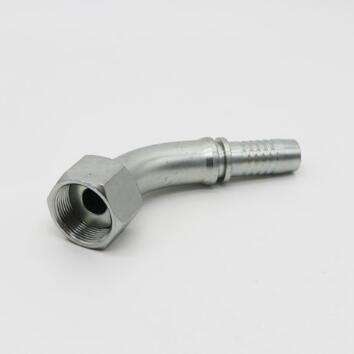

  • 22241 45° BSP FEMALE FLAT SEAL
  • 22241 45° BSP FEMALE FLAT SEAL
  • 22241 45° BSP FEMALE FLAT SEAL
22241 45° BSP FEMALE FLAT SEAL22241 45° BSP FEMALE FLAT SEAL22241 45° BSP FEMALE FLAT SEAL

22241 45° BSP FEMALE FLAT SEAL

  • Name:22241 45° BSP FEMALE FLAT SEAL
  • FITTING NO.:22241
  • Fittings material: 45#
  • Fitting Standard: BSP
  • Product description: 22241 45° BSP FEMALE FLAT SEAL
  • INQUIRY

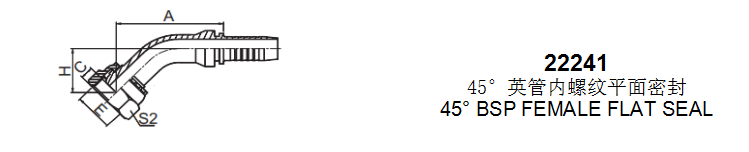

22241 45°英管内螺纹平面密封

45° BSP FEMALE FLAT SEAL

22241

代号 螺纹E 软管 HOSE BORE 尺寸 DIMENSIONS
PART NO. THREAD E 公称内径DN 标号DASH H A C S2
22241-04-04 G1/4"X19 6 4 18.8 40.9 8 19
22241-06-06 G3/8"X19 10 6 21 45.3 9 22
22241-08-08 G1/2"X14 12 8 24 58.9 10.5 27
22241-12-12 G3/4"X14 20 12 30 77.4 13.5 32
22241-16-16 G1"X11 25 16 31.5 82.7 15.5 41
22241-20-20W G1.1/4"X11 32 20 36.6 97.3 15.5 50


PREVIOUS：22211 BSP FEMALE FLAT SEAL NEXT：22291 90° BSP FEMALE FLAT SEAL
