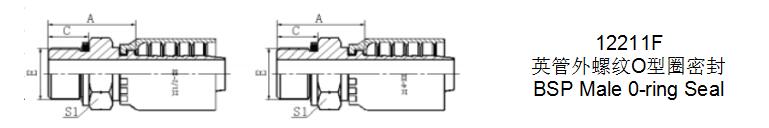

12211F 英管外螺纹O型圈
BSP MALE O-RING SEAL
| 代号 PART NO. |
螺纹 E THREAD E |
胶管 HOSE BORE | 尺寸 DIMENSIONS | ||||||
| 公称内径DN | 标号DASH | A | C | H | |||||
| 12211F-04-04 | G1/4"x19 | 6 | 04 | 25 | 11 | 19 | |||
| 12211F-04-06 | G1/4"x19 | 10 | 06 | 23.5 | 11 | 19 | |||
| 12211F-06-06 | G3/8"x19 | 10 | 06 | 26 | 11.5 | 24 | |||
| 12211F-08-04 | G1/2"x14 | 6 | 04 | 30 | 14 | 27 | |||
| 12211F-08-06 | G1/2"x14 | 10 | 06 | 32 | 14 | 27 | |||
| 12211F-08-08 | G1/2"x14 | 12 | 08 | 32.5 | 14 | 27 | |||
| 12211F-10-10 | G5/8"X14 | 16 | 10 | 33 | 15.5 | 30 | |||
| 12211F-12-10 | G3/4"X14 | 16 | 10 | 33 | 15.5 | 36 | |||
| 12211F-12-12 | G3/4"X14 | 20 | 12 | 35.5 | 15.5 | 36 | |||
| 12211F-12-16 | G3/4"X14 | 25 | 16 | 36.5 | 15.5 | 36 | |||
| 12211F-16-16 | G1"x11 | 25 | 16 | 42.5 | 18 | 41 | |||
| 12211F-20-20 | G1.1/4"x11 | 32 | 20 | 46/48.1 | 20 | 50 | |||
