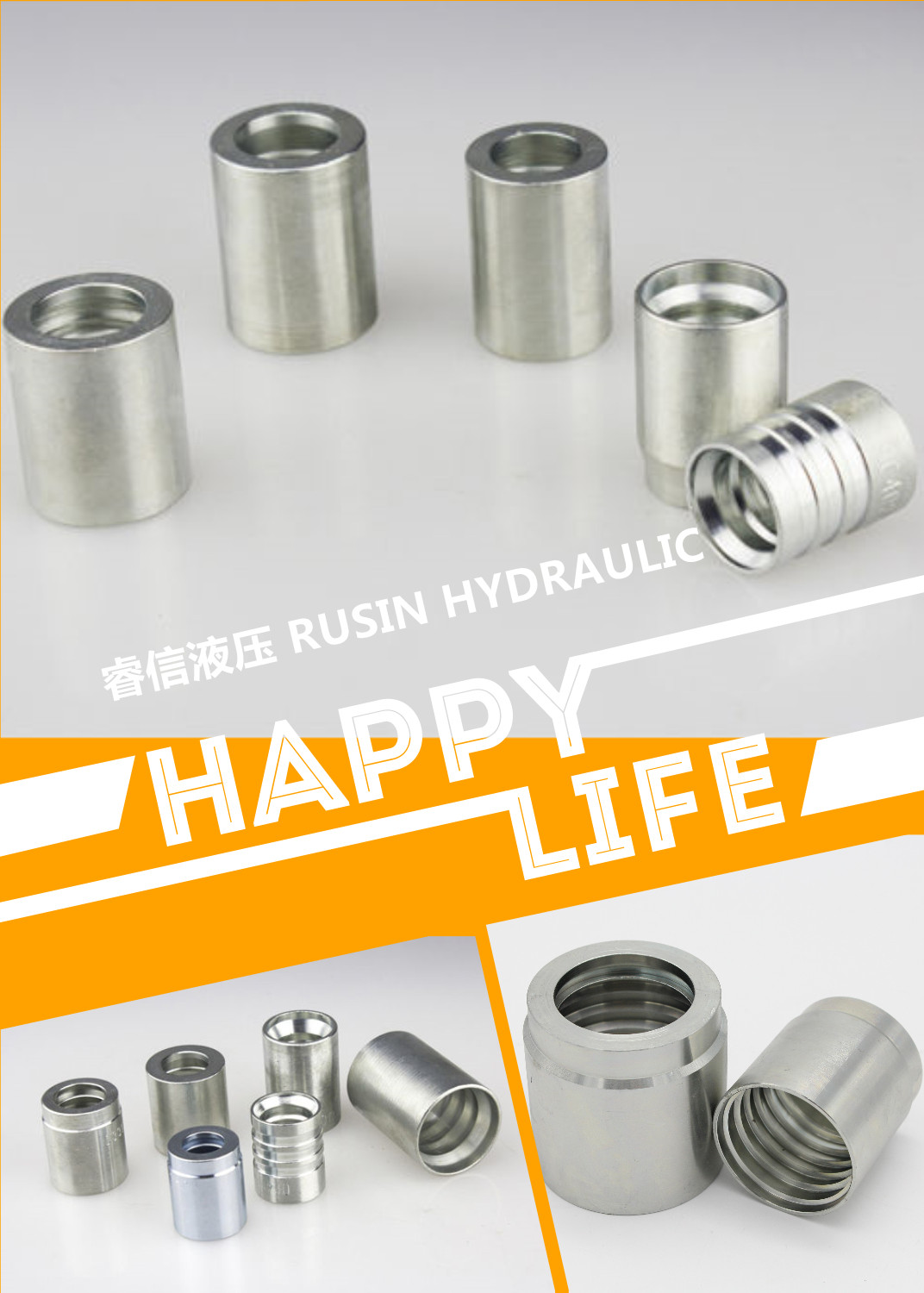

四层套筒 00401；01400；00400 ；000402
00401
| 代号 | 软管 HOSE BORE | 尺寸 DIMENSIONS | |||||
| PART NO. | 公称内径DN | 标号DASH | L | ||||
| 00401-20 | 32 | 20 | 66 | ||||
| 00401-24 | 40 | 24 | 70 | ||||
| 00401-32 | 50 | 32 | 77 | ||||
01400
| 代号 | 软管 HOSE BORE | 尺寸 DIMENSIONS | |||||
| PART NO. | 公称内径DN | 标号DASH | L | ||||
| 01400-06 | 10 | 6 | 39 | ||||
| 01400-08 | 12 | 8 | 41 | ||||
| 01400-10 | 16 | 10 | 43 | ||||
| 01400-12 | 20 | 12 | 51 | ||||
| 01400-16 | 25 | 16 | 61.5 | ||||
| 01400-20 | 32 | 20 | 67.5 | ||||
| 01400-24 | 40 | 24 | 75 | ||||
| 01400-32 | 50 | 32 | 79 | ||||
00400
| 代号 | 软管 HOSE BORE | 尺寸 DIMENSIONS | |||||
| PART NO. | 公称内径DN | 标号DASH | L | ||||
| 01400-04 | 6 | 4 | 37.5 | ||||
| 01400-06 | 10 | 6 | 39 | ||||
| 01400-08 | 12 | 8 | 41 | ||||
| 01400-10 | 16 | 10 | 43 | ||||
| 01400-12 | 20 | 12 | 51 | ||||
| 01400-16 | 25 | 16 | 61.5 | ||||
| 01400-20 | 32 | 20 | 67.5 | ||||
| 01400-24 | 40 | 24 | 75 | ||||
| 01400-32 | 50 | 32 | 79 | ||||
00402
| 代号 | 软管 HOSE BORE | 尺寸 DIMENSIONS | |||||
| PART NO. | 公称内径DN | 标号DASH | L | ||||
| 00402-04 | 6 | 4 | 30 | ||||
| 00402-06 | 10 | 6 | 33 | ||||
| 00402-08 | 12 | 8 | 34 | ||||
| 00402-10 | 16 | 10 | 39 | ||||
| 00402-12 | 20 | 12 | 40 | ||||
| 00402-16 | 25 | 16 | 51 | ||||
| 00402-20 | 32 | 20 | 60 | ||||
| 00402-24 | 40 | 24 | 70 | ||||
| 00402-32 | 50 | 32 | 72 | ||||
