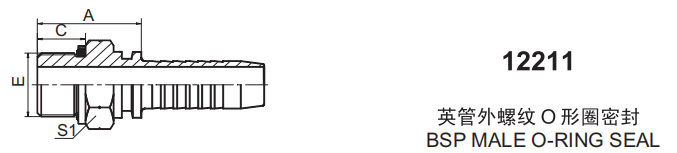

英管外螺纹O型圈密封
BSP MALE O-RING SEAL
| 代号 | 螺纹E | 软管 HOSE BORE | O形圈 | 尺寸 DIMENSIONS | |||
| PART NO. | THREAD E | 公称内径DN | 标号DASH | O-RING | A | C | S1 |
| 12211-04-04 | G1/4"X19 | 6 | 4 | O111 | 25 | 11 | 19 |
| 12211-04-06 | G1/4"X19 | 10 | 6 | O111 | 23.5 | 11 | 19 |
| 12211-06-06 | G3/8"X19 | 10 | 6 | O113 | 26 | 11.5 | 24 |
| 12211-08-04 | G1/2"X14 | 6 | 4 | O115 | 30 | 14 | 27 |
| 12211-08-06 | G1/2"X14 | 10 | 6 | O115 | 32 | 14 | 27 |
| 12211-08-08 | G1/2"X14 | 12 | 8 | O115 | 32.5 | 14 | 27 |
| 12211-10-10 | G5/8"X14 | 16 | 10 | O910 | 33 | 15.5 | 30 |
| 12211-12-10 | G3/4"X14 | 16 | 10 | O119 | 33 | 15.5 | 36 |
| 12211-12-12 | G3/4"X14 | 20 | 12 | O119 | 35.5 | 15.5 | 36 |
| 12211-12-16 | G3/4"X14 | 25 | 16 | O119 | 36.5 | 15.5 | 36 |
| 12211-16-16 | G1"X11 | 25 | 16 | O217 | 42.5 | 18 | 41 |
| 12211-20-20 | G1.1/4"X11 | 32 | 20 | O222 | 46 | 20 | 50 |
